AUTOMATIQUE - Ref. AN Calibre 1300.3 FP Journe FP Journe

Platinum case
Diameter: 40 or 42 mm
Overall height: 10.7 mm
Dial: white Gold and whitened guilloché Silver
Hands: blued Steel
Calibre 1300.3

Technical Specifications

Movement :

    Uni-directional automatic winding
    Date setting by turning crown in opposite ways (position 2)
    Time setting with crown in position 3
    Instantaneous date change

Dimensions :
  • Overall diameter : 30.80 mm
  • Casing-up diameter : 30.40 mm
  • Overall height : 5.80 mm
  • Height of winding stem : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Indications :

    Off-centre hours and minutes
    Small seconds at 4:30
    Large Date
    Power-reserve indicator at 7h30

Particularities :

    In-line lever escapement, 15-tooth wheel
    Balance with 4 inertia weights
    Flat Anachron microflamed spring
    Mobile stud holder
    Free-sprung balance
    Nivatronic laser-welded to the collet
    Pinned GE stud
    Three-position crown
    Slipping mainspring
    Off-centre winding rotor

Winding speed :

    274 clockwise revolutions (without mainspring slipping) / 24 hours

FREQUENCY :

    21'600 Alt/H, 3Hz

Balance :

    Interia: 10.10 mgcm2
    Angle of lift: 52°

Amplitude :

    12 h dial up : 280°
    90 h dial up : 220°

Autonomy :

    160 ± 10 hours

Nbre de jewels :

    37

Finish :

    High grade
    Circular stripes on the bridges
    Baseplate partly circular grained
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Steelwork with polished chamfers

Number of pieces :

    Movement: 257
    Cased up with strap: 294

Movement :

    Uni-directional automatic winding
    Date setting by turning crown in opposite ways (position 2)
    Time setting with crown in position 3
    Instantaneous date change

Dimensions :
  • Overall diameter : 30.80 mm
  • Casing-up diameter : 30.40 mm
  • Overall height : 5.80 mm
  • Height of winding stem : 3.00 mm
  • Diameter of stem thread : S0.90 mm
Indications :

    Off-centre hours and minutes
    Small seconds at 4:30
    Large Date
    Power-reserve indicator at 7h30

Particularities :

    In-line lever escapement, 15-tooth wheel
    Balance with 4 inertia weights
    Flat Anachron microflamed spring
    Mobile stud holder
    Free-sprung balance
    Nivatronic laser-welded to the collet
    Pinned GE stud
    Three-position crown
    Slipping mainspring
    Off-centre winding rotor

Winding speed :

    274 clockwise revolutions (without mainspring slipping) / 24 hours

FREQUENCY :

    21'600 Alt/H, 3Hz

Balance :

    Interia: 10.10 mgcm2
    Angle of lift: 52°

Amplitude :

    12 h dial up : 280°
    90 h dial up : 220°

Autonomy :

    160 ± 10 hours

Nbre de jewels :

    37

Finish :

    High grade
    Circular stripes on the bridges
    Baseplate partly circular grained
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Steelwork with polished chamfers

Number of pieces :

    Movement: 257
    Cased up with strap: 294


At the heart of the movement
At the heart of the movement
Brevet - EP 1 760 544 A1
fpjourne

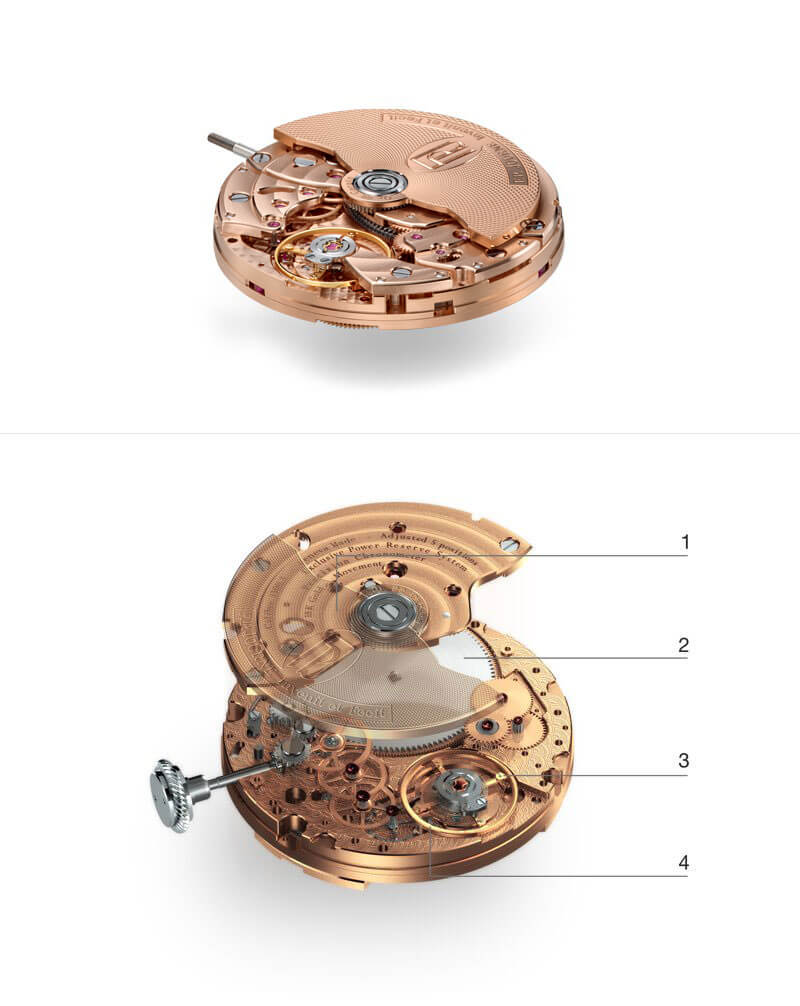

Technical description


(1) 22K Gold rotor with uni-directional winding
(2) Large capacity mainspring barrel
(3) Precision-adjustment weights
(4) Full-size free-sprung chronometer balance

Watches with long power reserves have hitherto been handicapped by small balances which are susceptible to shocks and disturbances. The Octa's compact construction allows a large (10.1 mm) balance to be fitted, giving greater inertia and stability. The free-sprung chronometer balance is adjusted by five turning weights that vibrate at a steady 21'600 times an hour.

Fully wound, the Octa delivers chronometric precision for 120 hours. The meter-long mainspring supplies an average 850gr of torque, limiting the loss in balance amplitude to 25% over the five-day period. Beyond that time, the watch will continue to go for another day or two, but the amplitude-loss no longer guarantees precision timekeeping.
Brevet - EP 1 760 544 A1
fpjourne

Technical description


(1) 22K Gold rotor with uni-directional winding
(2) Large capacity mainspring barrel
(3) Precision-adjustment weights
(4) Full-size free-sprung chronometer balance

Watches with long power reserves have hitherto been handicapped by small balances which are susceptible to shocks and disturbances. The Octa's compact construction allows a large (10.1 mm) balance to be fitted, giving greater inertia and stability. The free-sprung chronometer balance is adjusted by five turning weights that vibrate at a steady 21'600 times an hour.

Fully wound, the Octa delivers chronometric precision for 120 hours. The meter-long mainspring supplies an average 850gr of torque, limiting the loss in balance amplitude to 25% over the five-day period. Beyond that time, the watch will continue to go for another day or two, but the amplitude-loss no longer guarantees precision timekeeping.
