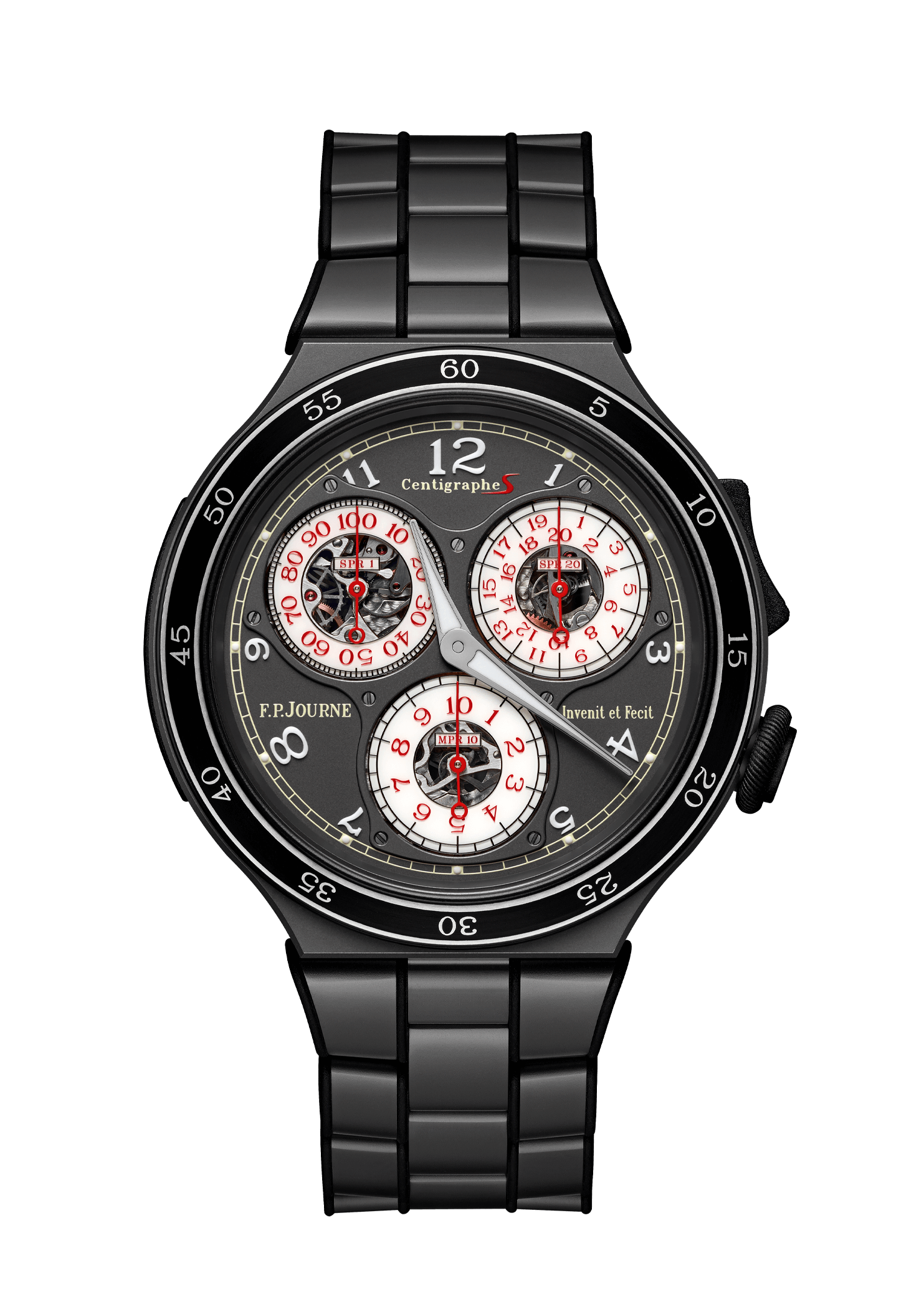

CENTIGRAPHE SPORT TITANIUM - Ref. CTS Calibre 1506 FP Journe FP Journe

Titanium case with rubber inserts
Diameter: 42 mm
Overall height: 11.6 mm
Dial: Aluminium alloy and sapphire with luminescent indexes and numbers
Hands: luminescent hands in Steel and red lacquered Titanium
Calibre 1506

Technical Specifications

Movement :

    Manual Winding
    Movement in aluminium alloy

Dimensions :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of winding system : 2.69 mm
  • Height of hands : 1.45 mm
  • Diameter of stem thread : S1.20 mm
Balance :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

FREQUENCY :

    21'600 Alt/h (3Hz)

INERTIA :

    10.10 mg / cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    0h dial up: 320°
    24h dial up: 280°

Escapement :

    In-line lever escapement
    15-tooth escape wheel

INDICATIONS :

    Central hours and minutes
    One-second chronograph: hand at 10 o'clock.
    20-seconds chronograph: hand at 2 o'clock.
    10-minutes chronograph: hand at 6 o'clock.

CHRONOGRAPH :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

Autonomy :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

Finishes :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

Movement :

    Manual Winding
    Movement in aluminium alloy

Dimensions :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of winding system : 2.69 mm
  • Height of hands : 1.45 mm
  • Diameter of stem thread : S1.20 mm
Balance :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

FREQUENCY :

    21'600 Alt/h (3Hz)

INERTIA :

    10.10 mg / cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    0h dial up: 320°
    24h dial up: 280°

Escapement :

    In-line lever escapement
    15-tooth escape wheel

INDICATIONS :

    Central hours and minutes
    One-second chronograph: hand at 10 o'clock.
    20-seconds chronograph: hand at 2 o'clock.
    10-minutes chronograph: hand at 6 o'clock.

CHRONOGRAPH :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

Autonomy :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

Finishes :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work


At the heart of the movement
At the heart of the movement
Brevet - EP 1 978 424 A1 - EP 1 818 734 A1
fpjourne

Technical description


The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.

The tachometer scales converts time units for 1 kilometre into speeds ranging from 6 km/h —walking pace — to 36,000 km/h, well above the escape velocity of a rocket going into low-level orbit.
Brevet - EP 1 978 424 A1 - EP 1 818 734 A1
