AUTOMATIQUE RÉSERVE - Ref. ARS2 Calibre 1300.3 FP Journe FP Journe

Titanium case and bracelet with rubber inserts
Diameter: 44 mm
Overall height: 11 mm
Dial: yellow, in Aluminium alloy with applied luminescent indexes and numerals, seconds counter in white sapphire
Hands: big luminescent hands in Steel, small hands in ivory color Steel and red lacquered Titanium
Calibre 1300.3

Technical Specifications

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37

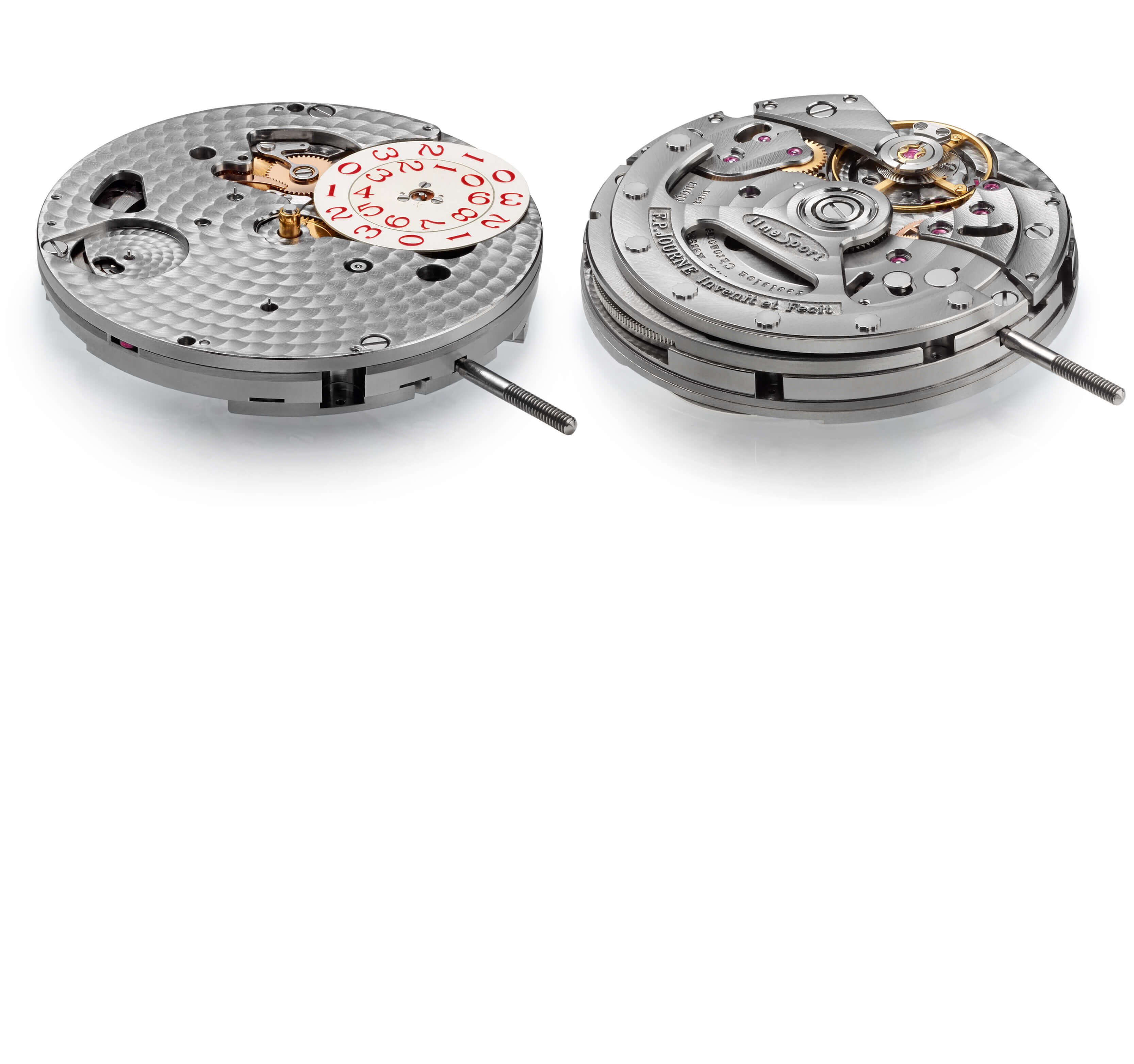

At the heart of the movement
At the heart of the movement
Brevet - EP 1 760 544 A1
fpjourne

Technical description


Brevet - EP 1 760 544 A1
fpjourne

Technical description


Titanium case and bracelet with rubber inserts
Diameter: 44 mm
Overall height: 11 mm
Dial: slate grey, in Aluminium alloy with applied luminescent indexes and numerals, seconds counter in white sapphire
Hands: big luminescent hands in Steel, small hands in ivory color Steel and red lacquered Titanium
Calibre 1300.3

Technical Specifications

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37


At the heart of the movement
At the heart of the movement
Brevet - EP 1 760 544 A1
fpjourne

Technical description


Brevet - EP 1 760 544 A1
fpjourne

Technical description


Titanium case and bracelet with rubber inserts
Diameter: 44 mm
Overall height: 11 mm
Dial: yellow, in Aluminium alloy with applied luminescent indexes and numerals, seconds counter in white sapphire
Hands: big luminescent hands in Steel, small hands in ivory color Steel and red lacquered Titanium
Finishing
Titanium case and bracelet with rubber inserts
Diameter: 44 mm
Overall height: 11 mm
Dial: yellow, in Aluminium alloy with applied luminescent indexes and numerals, seconds counter in white sapphire
Hands: big luminescent hands in Steel, small hands in ivory color Steel and red lacquered Titanium
Calibre 1300.3

Technical Specifications

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37


At the heart of the movement
At the heart of the movement
Brevet - EP 1 760 544 A1
fpjourne

Technical description


Brevet - EP 1 760 544 A1
fpjourne

Technical description


Titanium case and bracelet with rubber inserts
Diameter: 44 mm
Overall height: 11 mm
Dial: slate grey, in Aluminium alloy with applied luminescent indexes and numerals, seconds counter in white sapphire
Hands: big luminescent hands in Steel, small hands in ivory color Steel and red lacquered Titanium
Calibre 1300.3

Technical Specifications

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37


At the heart of the movement
At the heart of the movement
Brevet - EP 1 760 544 A1
fpjourne

Technical description


Brevet - EP 1 760 544 A1
fpjourne

Technical description


AUTOMATIQUE RÉSERVE - Ref. ARS2 Calibre 1300.3 FP Journe FP Journe

Other views
F.P.Journe
Other views
F.P.Journe

About

THIS WATCH WAS PRODUCED BETWEEN 2018 AND 2019.

THE CASE OF 44 MM DIAMETER AND 11 MM THICK, WITH BEZEL INLAID WITH CERAMIC, ENCLOSES THE OCTA 1300.3 AUTOMATIC MOVEMENT WITH A VERY LARGE DATE, MADE IN ALUMINIUM ALLOY.

THE DIAL IS IN ALUMINUM ALLOY OF YELLOW OR ANTHRACITE COLOUR WITH LUMINESCENT APPLIED NUMERALS, SECONDS COUNTER IN WHITE SAPPHIRE AND LUMINESCENT HOURS AND MINUTES HANDS. WITH AN EXTREME LIGHTNESS AND IN ABSOLUTE COMFORT, THIS WATCH IN ITS TOTALITY ONLY WEIGHS AROUND 83 GRAMS.

LE BOÎTIER ET LES MAILLONS SONT SERTIS D’INSERTS EN CAOUTCHOUC À L’INSTAR DES PARE-CHOCS DE VOITURES ANCIENNES, QUI PROTÈGENT LE MÉTAL DE LA MONTRE DES FROTTEMENTS SUR LES SURFACES LISSES. LES MAILLONS DES ATTACHES SONT ARTICULÉS AFIN DE S’ADAPTER AUX DIFFÉRENTES TAILLES DE POIGNET ET LA BOUCLE DÉPLOYANTE EST AJUSTABLE EN LONGUEUR DE PLUS OU MOINS 5 MM.

THE AUTOMATIQUE RÉSERVE FEATURES A DAY AND NIGHT INDICATION AND A DATE NOW EVEN LARGER (4.7 X 2.6MM) FOR OPTIMAL READABILITY. THE AUTOMATIC WINDING MECHANICAL MOVEMENT USES ANY SLIGHTEST MOVEMENT OF THE WRIST TO INCREASE THE WINDING OF THE WATCH PROVIDING 160 HOURS OF POWER RESERVE.
Testimony
Calibre OCTA

A horological ideal

“The construction of the Octa calibre has less powerful ties with horological history than do the constant-force device or resonance models, but it symbolises an horological ideal of giving timekeepers the highest possible degree of precision and autonomy!

One can indeed note the fact that if church clocks are placed so high, in addition to enhancing visibility, it was mostly because it often took an entire month for the driving-weights to drop the length of their cords. Numerous systems were invented to increase the operating duration of timekeeping devices, meeting with various degrees of success. Given the small volume of a wristwatch, the size of the mainspring was automatically limited. Watchmakers therefore discovered the trick of adding an extra wheel to the customary geartrain in order to extend the duration of its development. Unfortunately, actually using this system, even with a stronger spring, led them to observe that the level of energy actually reaching the balance remained low. To compensate for this, they fitted a smaller balance using less energy, but which was also less stable. It is therefore not unusual to find that some watches able to run for several days display an extremely unpredictable level of precision.

This challenge was a powerful source of motivation! I then imagined that the best and the most obvious means of extending the running duration would be to extend the capacity of the spring development. The difficulty lay in integrating it on the same level as the gear-train and the escapement, given its stability: 1 metre and 1 millimetre thick. Thanks to the low torque of this spring, I could achieve extremely fast automatic winding (one and a half hours on a Chappuis cyclotest for over 5 days’ running).

Once the challenge of autonomy was thus successfully met with this automatic winding calibre, I knuckled down to the second challenge of managing to insert various complications into that same movement: power reserve with large date display, fly-back chronograph with large date display, retrograde annual calendar, etc… and of doing so while maintaining an identical size for all models.

Three years of research and development were required before this automatic winding movement that is unique in the world could be presented to the public.”

François-Paul Journe

Technical Specifications

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37


At the heart of the movement
At the heart of the movement
Brevet - EP 1 760 544 A1
fpjourne

Technical description


Brevet - EP 1 760 544 A1
fpjourne

Technical description


  • About

    THIS WATCH WAS PRODUCED BETWEEN 2018 AND 2019.

    THE CASE OF 44 MM DIAMETER AND 11 MM THICK, WITH BEZEL INLAID WITH CERAMIC, ENCLOSES THE OCTA 1300.3 AUTOMATIC MOVEMENT WITH A VERY LARGE DATE, MADE IN ALUMINIUM ALLOY.

    THE DIAL IS IN ALUMINUM ALLOY OF YELLOW OR ANTHRACITE COLOUR WITH LUMINESCENT APPLIED NUMERALS, SECONDS COUNTER IN WHITE SAPPHIRE AND LUMINESCENT HOURS AND MINUTES HANDS. WITH AN EXTREME LIGHTNESS AND IN ABSOLUTE COMFORT, THIS WATCH IN ITS TOTALITY ONLY WEIGHS AROUND 83 GRAMS.

    LE BOÎTIER ET LES MAILLONS SONT SERTIS D’INSERTS EN CAOUTCHOUC À L’INSTAR DES PARE-CHOCS DE VOITURES ANCIENNES, QUI PROTÈGENT LE MÉTAL DE LA MONTRE DES FROTTEMENTS SUR LES SURFACES LISSES. LES MAILLONS DES ATTACHES SONT ARTICULÉS AFIN DE S’ADAPTER AUX DIFFÉRENTES TAILLES DE POIGNET ET LA BOUCLE DÉPLOYANTE EST AJUSTABLE EN LONGUEUR DE PLUS OU MOINS 5 MM.

    THE AUTOMATIQUE RÉSERVE FEATURES A DAY AND NIGHT INDICATION AND A DATE NOW EVEN LARGER (4.7 X 2.6MM) FOR OPTIMAL READABILITY. THE AUTOMATIC WINDING MECHANICAL MOVEMENT USES ANY SLIGHTEST MOVEMENT OF THE WRIST TO INCREASE THE WINDING OF THE WATCH PROVIDING 160 HOURS OF POWER RESERVE.
  • Testimony

    Calibre OCTA

    A horological ideal

    “The construction of the Octa calibre has less powerful ties with horological history than do the constant-force device or resonance models, but it symbolises an horological ideal of giving timekeepers the highest possible degree of precision and autonomy!

    One can indeed note the fact that if church clocks are placed so high, in addition to enhancing visibility, it was mostly because it often took an entire month for the driving-weights to drop the length of their cords. Numerous systems were invented to increase the operating duration of timekeeping devices, meeting with various degrees of success. Given the small volume of a wristwatch, the size of the mainspring was automatically limited. Watchmakers therefore discovered the trick of adding an extra wheel to the customary geartrain in order to extend the duration of its development. Unfortunately, actually using this system, even with a stronger spring, led them to observe that the level of energy actually reaching the balance remained low. To compensate for this, they fitted a smaller balance using less energy, but which was also less stable. It is therefore not unusual to find that some watches able to run for several days display an extremely unpredictable level of precision.

    This challenge was a powerful source of motivation! I then imagined that the best and the most obvious means of extending the running duration would be to extend the capacity of the spring development. The difficulty lay in integrating it on the same level as the gear-train and the escapement, given its stability: 1 metre and 1 millimetre thick. Thanks to the low torque of this spring, I could achieve extremely fast automatic winding (one and a half hours on a Chappuis cyclotest for over 5 days’ running).

    Once the challenge of autonomy was thus successfully met with this automatic winding calibre, I knuckled down to the second challenge of managing to insert various complications into that same movement: power reserve with large date display, fly-back chronograph with large date display, retrograde annual calendar, etc… and of doing so while maintaining an identical size for all models.

    Three years of research and development were required before this automatic winding movement that is unique in the world could be presented to the public.”

    François-Paul Journe
  • Technical description

    Technical Specifications

    MOVEMENT :

      Unidirectional automatic winding
      Movement in Aluminium alloy
      Off centre winding rotor in Titanium with Tungsten segment
      Escapement 15 tooth

    DIMENSIONS :
    • Overall diameter : 34.60 mm
    • Casing-up diameter : 30.40 mm
    • Overall height Aluminium : 6.10 mm
    • Height if winding stem : 3.10 mm
    • Diameter of stem thread : S1.20 mm
    BALANCE :

      Four adjustable inertia weights
      Anachron free-sprung flat balance spring
      Mobile stud holder
      Free Sprung
      Nivatronic laser soldered balance spring
      Pinned GE stud

    FREQUENCY :

      21 600 Alt/h, 3 Hz

    INERTIA :

      10.10 mg/cm2

    ANGLE OF LIFT :

      52°

    AMPLITUDE :

      12 h dial up : 280°
      90 h dial up : 220°

    CROWN :

      3 positions:
      Winding of the watch in position 0, clock wise
      Correction of date in position 1, anti clock wise
      Correction of time in position 2

    INDICATIONS :

      Centred hours and minutes
      Small second at 6h00
      Day/Night indication at 9h00s
      Power reserve at 10h30
      Very large date at 1h00

    AUTONOMY :

      160 ± 10 hours

    WINDING SPEED :

      On watch winder: 274 rotations / 24 hours

    DECORATION :

      Circular Côtes de Genève on bridges
      Partly circular graining on baseplate
      Plished screw heads with chamfered slots
      Chamfered and circular grained wheels
      Steel components hand polished and chamfered

    NUMBER OF PARTS :

      Movement without dial : 286
      Cased up with bracelet : 463
      Jewels : 37

    MOVEMENT :

      Unidirectional automatic winding
      Movement in Aluminium alloy
      Off centre winding rotor in Titanium with Tungsten segment
      Escapement 15 tooth

    DIMENSIONS :
    • Overall diameter : 34.60 mm
    • Casing-up diameter : 30.40 mm
    • Overall height Aluminium : 6.10 mm
    • Height if winding stem : 3.10 mm
    • Diameter of stem thread : S1.20 mm
    BALANCE :

      Four adjustable inertia weights
      Anachron free-sprung flat balance spring
      Mobile stud holder
      Free Sprung
      Nivatronic laser soldered balance spring
      Pinned GE stud

    FREQUENCY :

      21 600 Alt/h, 3 Hz

    INERTIA :

      10.10 mg/cm2

    ANGLE OF LIFT :

      52°

    AMPLITUDE :

      12 h dial up : 280°
      90 h dial up : 220°

    CROWN :

      3 positions:
      Winding of the watch in position 0, clock wise
      Correction of date in position 1, anti clock wise
      Correction of time in position 2

    INDICATIONS :

      Centred hours and minutes
      Small second at 6h00
      Day/Night indication at 9h00s
      Power reserve at 10h30
      Very large date at 1h00

    AUTONOMY :

      160 ± 10 hours

    WINDING SPEED :

      On watch winder: 274 rotations / 24 hours

    DECORATION :

      Circular Côtes de Genève on bridges
      Partly circular graining on baseplate
      Plished screw heads with chamfered slots
      Chamfered and circular grained wheels
      Steel components hand polished and chamfered

    NUMBER OF PARTS :

      Movement without dial : 286
      Cased up with bracelet : 463
      Jewels : 37


    At the heart of the movement
    At the heart of the movement
    Brevet - EP 1 760 544 A1
    fpjourne

    Technical description


    Brevet - EP 1 760 544 A1
    fpjourne

    Technical description


Technical Specifications

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37

MOVEMENT :

    Unidirectional automatic winding
    Movement in Aluminium alloy
    Off centre winding rotor in Titanium with Tungsten segment
    Escapement 15 tooth

DIMENSIONS :
  • Overall diameter : 34.60 mm
  • Casing-up diameter : 30.40 mm
  • Overall height Aluminium : 6.10 mm
  • Height if winding stem : 3.10 mm
  • Diameter of stem thread : S1.20 mm
BALANCE :

    Four adjustable inertia weights
    Anachron free-sprung flat balance spring
    Mobile stud holder
    Free Sprung
    Nivatronic laser soldered balance spring
    Pinned GE stud

FREQUENCY :

    21 600 Alt/h, 3 Hz

INERTIA :

    10.10 mg/cm2

ANGLE OF LIFT :

    52°

AMPLITUDE :

    12 h dial up : 280°
    90 h dial up : 220°

CROWN :

    3 positions:
    Winding of the watch in position 0, clock wise
    Correction of date in position 1, anti clock wise
    Correction of time in position 2

INDICATIONS :

    Centred hours and minutes
    Small second at 6h00
    Day/Night indication at 9h00s
    Power reserve at 10h30
    Very large date at 1h00

AUTONOMY :

    160 ± 10 hours

WINDING SPEED :

    On watch winder: 274 rotations / 24 hours

DECORATION :

    Circular Côtes de Genève on bridges
    Partly circular graining on baseplate
    Plished screw heads with chamfered slots
    Chamfered and circular grained wheels
    Steel components hand polished and chamfered

NUMBER OF PARTS :

    Movement without dial : 286
    Cased up with bracelet : 463
    Jewels : 37


At the heart of the movement
At the heart of the movement
Brevet - EP 1 760 544 A1
fpjourne

Technical description


Brevet - EP 1 760 544 A1
fpjourne

Technical description
