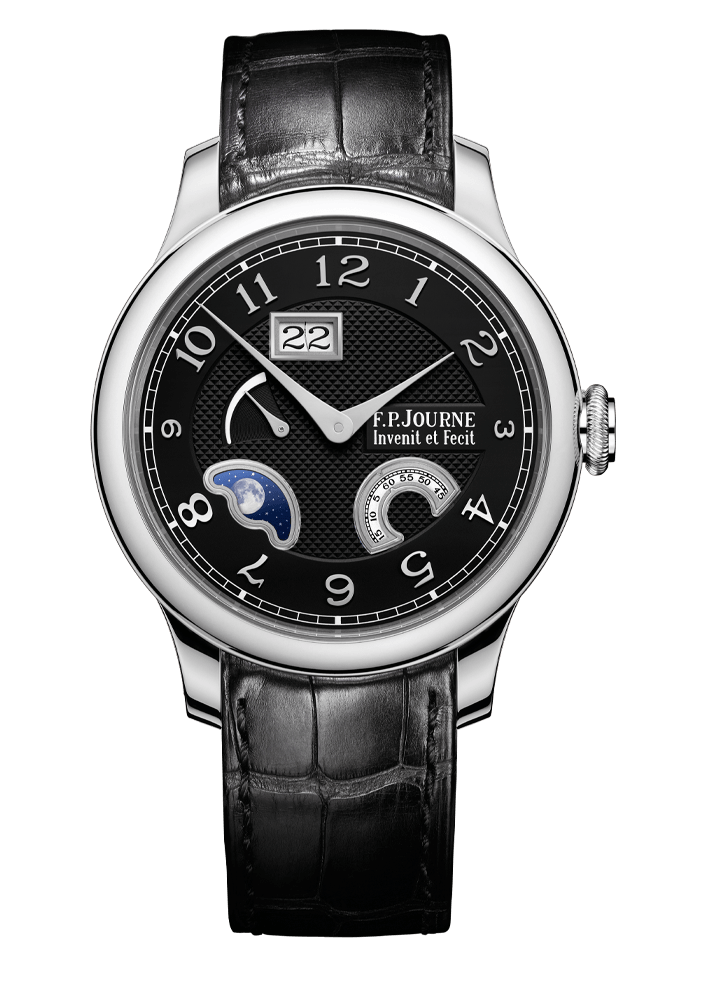

Lune Black Label Calibre 1300.3 FP Journe FP Journe

Platinum case
Diameter: 40 or 42 mm
Overall height: 10.7 mm
Dial: blackened Gold and whitened Silver, Gold numerals surfaced with a diamond tool
Hands: rhodium plated Steel
Calibre 1300.3

Technical Specifications

Indications :

    Central hours and minutes
    Small second at 4h30
    Large Date
    Power reserve at 10h00
    Moon phase

Dimensions :
  • Overall diameter : 30.80 mm
  • Casing-up diameter : 30.40 mm
  • Overall Height : 5.90 mm
  • Height of winding stem : 3.00 mm
  • Diameter of stem thread : S0.90mm
Particularities :

    In-line lever escapement, 15-tooth wheel
    Balance with 4 inertia weights
    Flat Anachron microflamed spring
    Mobile stud holder
    Free-sprung balance
    Nivatronic laser-welded to the collet
    Pinned GE stud
    Three-position crown
    Slipping mainspring
    Off-centre winding rotor

Winding Speed :

    274 anti clock-wise rotations per 24 hours

Features :

    Uni-directional automatic winding
    Instantaneous date change
    Date and moon setting by turning crown in opposite ways (position 2)
    Time setting with crown in position 3

Frequency :

    21'600 Alt/h, 3 Hz

Balance: :

    Inertia: 10.10 mgcm2
    Angle of lift: 52°

Amplitude :

    12 h dial up : 280°
    90 h dial up : 220°

Autonomy :

    160 ± 10 hours

Number of jewels :

    36

Decoration :

    High grade
    Circular stripes on the bridges
    Baseplate partly circular grained
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Steelwork with polished chamfers and straight graining

Number of pieces :

    Movement: 271
    Cased up with strap: 308

Indications :

    Central hours and minutes
    Small second at 4h30
    Large Date
    Power reserve at 10h00
    Moon phase

Dimensions :
  • Overall diameter : 30.80 mm
  • Casing-up diameter : 30.40 mm
  • Overall Height : 5.90 mm
  • Height of winding stem : 3.00 mm
  • Diameter of stem thread : S0.90mm
Particularities :

    In-line lever escapement, 15-tooth wheel
    Balance with 4 inertia weights
    Flat Anachron microflamed spring
    Mobile stud holder
    Free-sprung balance
    Nivatronic laser-welded to the collet
    Pinned GE stud
    Three-position crown
    Slipping mainspring
    Off-centre winding rotor

Winding Speed :

    274 anti clock-wise rotations per 24 hours

Features :

    Uni-directional automatic winding
    Instantaneous date change
    Date and moon setting by turning crown in opposite ways (position 2)
    Time setting with crown in position 3

Frequency :

    21'600 Alt/h, 3 Hz

Balance: :

    Inertia: 10.10 mgcm2
    Angle of lift: 52°

Amplitude :

    12 h dial up : 280°
    90 h dial up : 220°

Autonomy :

    160 ± 10 hours

Number of jewels :

    36

Decoration :

    High grade
    Circular stripes on the bridges
    Baseplate partly circular grained
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Steelwork with polished chamfers and straight graining

Number of pieces :

    Movement: 271
    Cased up with strap: 308


At the heart of the movement
At the heart of the movement
Brevet - EP 1 760 544 A1
fpjourne

Technical description


(1) 22K Gold rotor with uni-directional winding
(2) Large capacity mainspring barrel
(3) Precision-adjustment weights
(4) Full-size free-sprung chronometer balance

Watches with long power reserves have hitherto been handicapped by small balances which are susceptible to shocks and disturbances. The Octa's compact construction allows a large (10.1 mm) balance to be fitted, giving greater inertia and stability. The free-sprung chronometer balance is adjusted by five turning weights that vibrate at a steady 21'600 times an hour.

Fully wound, the Octa delivers chronometric precision for 120 hours. The meter-long mainspring supplies an average 850gr of torque, limiting the loss in balance amplitude to 25% over the five-day period. Beyond that time, the watch will continue to go for another day or two, but the amplitude-loss no longer guarantees precision timekeeping.
Brevet - EP 1 760 544 A1
fpjourne

Technical description


(1) 22K Gold rotor with uni-directional winding
(2) Large capacity mainspring barrel
(3) Precision-adjustment weights
(4) Full-size free-sprung chronometer balance

Watches with long power reserves have hitherto been handicapped by small balances which are susceptible to shocks and disturbances. The Octa's compact construction allows a large (10.1 mm) balance to be fitted, giving greater inertia and stability. The free-sprung chronometer balance is adjusted by five turning weights that vibrate at a steady 21'600 times an hour.

Fully wound, the Octa delivers chronometric precision for 120 hours. The meter-long mainspring supplies an average 850gr of torque, limiting the loss in balance amplitude to 25% over the five-day period. Beyond that time, the watch will continue to go for another day or two, but the amplitude-loss no longer guarantees precision timekeeping.
Platinum case
Diameter: 40 or 42 mm
Overall height: 10.7 mm
Dial: blackened Gold and whitened Silver, Gold numerals surfaced with a diamond tool
Hands: rhodium plated Steel
Finishing
Platinum case
Diameter: 40 or 42 mm
Overall height: 10.7 mm
Dial: blackened Gold and whitened Silver, Gold numerals surfaced with a diamond tool
Hands: rhodium plated Steel
Calibre 1300.3

Technical Specifications

Indications :

    Central hours and minutes
    Small second at 4h30
    Large Date
    Power reserve at 10h00
    Moon phase

Dimensions :
  • Overall diameter : 30.80 mm
  • Casing-up diameter : 30.40 mm
  • Overall Height : 5.90 mm
  • Height of winding stem : 3.00 mm
  • Diameter of stem thread : S0.90mm
Particularities :

    In-line lever escapement, 15-tooth wheel
    Balance with 4 inertia weights
    Flat Anachron microflamed spring
    Mobile stud holder
    Free-sprung balance
    Nivatronic laser-welded to the collet
    Pinned GE stud
    Three-position crown
    Slipping mainspring
    Off-centre winding rotor

Winding Speed :

    274 anti clock-wise rotations per 24 hours

Features :

    Uni-directional automatic winding
    Instantaneous date change
    Date and moon setting by turning crown in opposite ways (position 2)
    Time setting with crown in position 3

Frequency :

    21'600 Alt/h, 3 Hz

Balance: :

    Inertia: 10.10 mgcm2
    Angle of lift: 52°

Amplitude :

    12 h dial up : 280°
    90 h dial up : 220°

Autonomy :

    160 ± 10 hours

Number of jewels :

    36

Decoration :

    High grade
    Circular stripes on the bridges
    Baseplate partly circular grained
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Steelwork with polished chamfers and straight graining

Number of pieces :

    Movement: 271
    Cased up with strap: 308

Indications :

    Central hours and minutes
    Small second at 4h30
    Large Date
    Power reserve at 10h00
    Moon phase

Dimensions :
  • Overall diameter : 30.80 mm
  • Casing-up diameter : 30.40 mm
  • Overall Height : 5.90 mm
  • Height of winding stem : 3.00 mm
  • Diameter of stem thread : S0.90mm
Particularities :

    In-line lever escapement, 15-tooth wheel
    Balance with 4 inertia weights
    Flat Anachron microflamed spring
    Mobile stud holder
    Free-sprung balance
    Nivatronic laser-welded to the collet
    Pinned GE stud
    Three-position crown
    Slipping mainspring
    Off-centre winding rotor

Winding Speed :

    274 anti clock-wise rotations per 24 hours

Features :

    Uni-directional automatic winding
    Instantaneous date change
    Date and moon setting by turning crown in opposite ways (position 2)
    Time setting with crown in position 3

Frequency :

    21'600 Alt/h, 3 Hz

Balance: :

    Inertia: 10.10 mgcm2
    Angle of lift: 52°

Amplitude :

    12 h dial up : 280°
    90 h dial up : 220°

Autonomy :

    160 ± 10 hours

Number of jewels :

    36

Decoration :

    High grade
    Circular stripes on the bridges
    Baseplate partly circular grained
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Steelwork with polished chamfers and straight graining

Number of pieces :

    Movement: 271
    Cased up with strap: 308


At the heart of the movement
At the heart of the movement
Brevet - EP 1 760 544 A1
fpjourne

Technical description


(1) 22K Gold rotor with uni-directional winding
(2) Large capacity mainspring barrel
(3) Precision-adjustment weights
(4) Full-size free-sprung chronometer balance

Watches with long power reserves have hitherto been handicapped by small balances which are susceptible to shocks and disturbances. The Octa's compact construction allows a large (10.1 mm) balance to be fitted, giving greater inertia and stability. The free-sprung chronometer balance is adjusted by five turning weights that vibrate at a steady 21'600 times an hour.

Fully wound, the Octa delivers chronometric precision for 120 hours. The meter-long mainspring supplies an average 850gr of torque, limiting the loss in balance amplitude to 25% over the five-day period. Beyond that time, the watch will continue to go for another day or two, but the amplitude-loss no longer guarantees precision timekeeping.
Brevet - EP 1 760 544 A1
fpjourne

Technical description


(1) 22K Gold rotor with uni-directional winding
(2) Large capacity mainspring barrel
(3) Precision-adjustment weights
(4) Full-size free-sprung chronometer balance

Watches with long power reserves have hitherto been handicapped by small balances which are susceptible to shocks and disturbances. The Octa's compact construction allows a large (10.1 mm) balance to be fitted, giving greater inertia and stability. The free-sprung chronometer balance is adjusted by five turning weights that vibrate at a steady 21'600 times an hour.

Fully wound, the Octa delivers chronometric precision for 120 hours. The meter-long mainspring supplies an average 850gr of torque, limiting the loss in balance amplitude to 25% over the five-day period. Beyond that time, the watch will continue to go for another day or two, but the amplitude-loss no longer guarantees precision timekeeping.

Lune Black Label Calibre 1300.3 FP Journe FP Journe

Other views
F.P.Journe

About

AN EXCLUSIVE COLLECTION AVAILABLE ONLY FOR F.P.JOURNE WATCH OWNERS.

WITH A LIMITED PRODUCTION OF ABOUT 900 TIMEPIECES PER YEAR, F.P.JOURNE WANTED TO OFFER AN EVEN MORE EXCLUSIVE TIMEKEEPER THAT WOULD BE AVAILABLE ONLY FOR OWNERS OF AN F.P.JOURNE WATCH. WITH A CASE MADE IN PLATINUM, THE MOST PRECIOUS METAL, F.P.JOURNE HAS CREATED A DISTINGUISHED BLACK DIAL THAT PERSONALIZES EVEN FURTHER THE ELEGANCE OF THE BRAND WATCHES. THE BLACK LABEL COLLECTION WAS BORN.

WITH HIS OWN DIAL FACTORY, FRANÇOIS-PAUL JOURNE HAS NO OTHER LIMIT THAN THAT OF HIS IMAGINATION. HE HAS APPLIED HIS LABEL INVENIT ET FECIT ON EACH ONE, CERTIFYING AN AUTHENTIC CALIBRE, ENTIRELY INVENTED, PRODUCED AND ASSEMBLED IN THE WORKSHOPS OF HIS CENTRAL GENEVA MANUFACTURE.

THE BLACK LABEL COLLECTION IS AVAILABLE ONLY IN THE F.P.JOURNE BOUTIQUES AND ESPACES.

F.P.JOURNE PRESENTS THE NEW LUNE: A MORE VISIBLE READING OF THE TIME AND A DATE TWICE AS LARGE.

The F.P.JOURNE LUNE has a mechanical movement with automatic winding, manufactured in 18K rose Gold, built on the exclusive Calibre Octa 1300.3. It has made its mark as the first automatic movement with a power reserve sufficient to insure precision timekeeping for over five days or 120 h (EFFECTIVE power reserve: 160 h ± 10 h). It is wound unidirectionally by the exclusive off-centre F.P.JOURNE ROTOR IN 22K 5N Gold, using A SELF-LOCKING BALL BEARING SYSTEM for unequalled efficiency. EVERY INFINITESIMAL MOVEMENT OF THE WRIST IS THUS MAXIMALLY EXPLOITED FOR AN OPTIMISED WINDING OF THE WATCH. THE VARIABLE INERTIA BALANCE WHEEL ENSURES AN OPTIMUM YIELD THAT OFFERS AN IRREPROACHABLE STABILITY.

The F.P.JOURNE Lune’s two dials are made of 18K Gold. The off-centre dial, with Gold hour numerals surfaced with a diamond tool, is encircled by a polished Steel ring that is screwed to the second dial, one of the brand’s signatures. The main dial features a very large aperture for the date, a retrograde power reserve indication with a 120-hour scale as well as the moon phases.

The moonphase complication offers a link to ancient times, when the full moon was the only source of light during the night and instrumental in navigation and the rise of civilization. While today we no longer depend on moonlight for navigation, the moonphase remains one of the most poetic of all complications, giving an alternative perspective of the passage of time.

A SPECIFIC WHEEL TRAIN ALLOWS PRECISE MOON PHASE INDICATIONS. ADJUSTING THE INDICATIONS IS DONE VIA THE CROWN, WHICH MAKES IT VERY EASY TO USE.

The Lune was awarded the Prize “Best Men’s Watch” at the Geneva Grand Prix d’Horlogerie in 2003.
Testimony
Calibre OCTA

A horological ideal

“The construction of the Octa calibre has less powerful ties with horological history than do the constant-force device or resonance models, but it symbolises an horological ideal of giving timekeepers the highest possible degree of precision and autonomy!

One can indeed note the fact that if church clocks are placed so high, in addition to enhancing visibility, it was mostly because it often took an entire month for the driving-weights to drop the length of their cords. Numerous systems were invented to increase the operating duration of timekeeping devices, meeting with various degrees of success. Given the small volume of a wristwatch, the size of the mainspring was automatically limited. Watchmakers therefore discovered the trick of adding an extra wheel to the customary geartrain in order to extend the duration of its development. Unfortunately, actually using this system, even with a stronger spring, led them to observe that the level of energy actually reaching the balance remained low. To compensate for this, they fitted a smaller balance using less energy, but which was also less stable. It is therefore not unusual to find that some watches able to run for several days display an extremely unpredictable level of precision.

This challenge was a powerful source of motivation! I then imagined that the best and the most obvious means of extending the running duration would be to extend the capacity of the spring development. The difficulty lay in integrating it on the same level as the gear-train and the escapement, given its stability: 1 metre and 1 millimetre thick. Thanks to the low torque of this spring, I could achieve extremely fast automatic winding (one and a half hours on a Chappuis cyclotest for over 5 days’ running).

Once the challenge of autonomy was thus successfully met with this automatic winding calibre, I knuckled down to the second challenge of managing to insert various complications into that same movement: power reserve with large date display, fly-back chronograph with large date display, retrograde annual calendar, etc… and of doing so while maintaining an identical size for all models.

Three years of research and development were required before this automatic winding movement that is unique in the world could be presented to the public.”

François-Paul Journe
