BOUTIQUE EDITION - CHRONOGRAPHE RATTRAPANTE Calibre 1518 FP Journe FP Journe

18K 6N Gold case and bracelet with matte hammered finishing
Diameter: 44 mm
Overall height: 12.1 mm
Dial: blackened guilloché Silver dial, matte 5N Gold appliqué numerals, counters in whitened guilloché Silver
Hands: matte 5N gilt Steel, ivory coloured Steel and blued Steel
Calibre 1518

Technical Specifications

Movement :

    In 18K rose Gold
    Mechanical with manual winding
    38 turns of crown

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Power reserve :

    80 ± 2 hours without the chronograph

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Movement :

    In 18K rose Gold
    Mechanical with manual winding
    38 turns of crown

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Power reserve :

    80 ± 2 hours without the chronograph

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

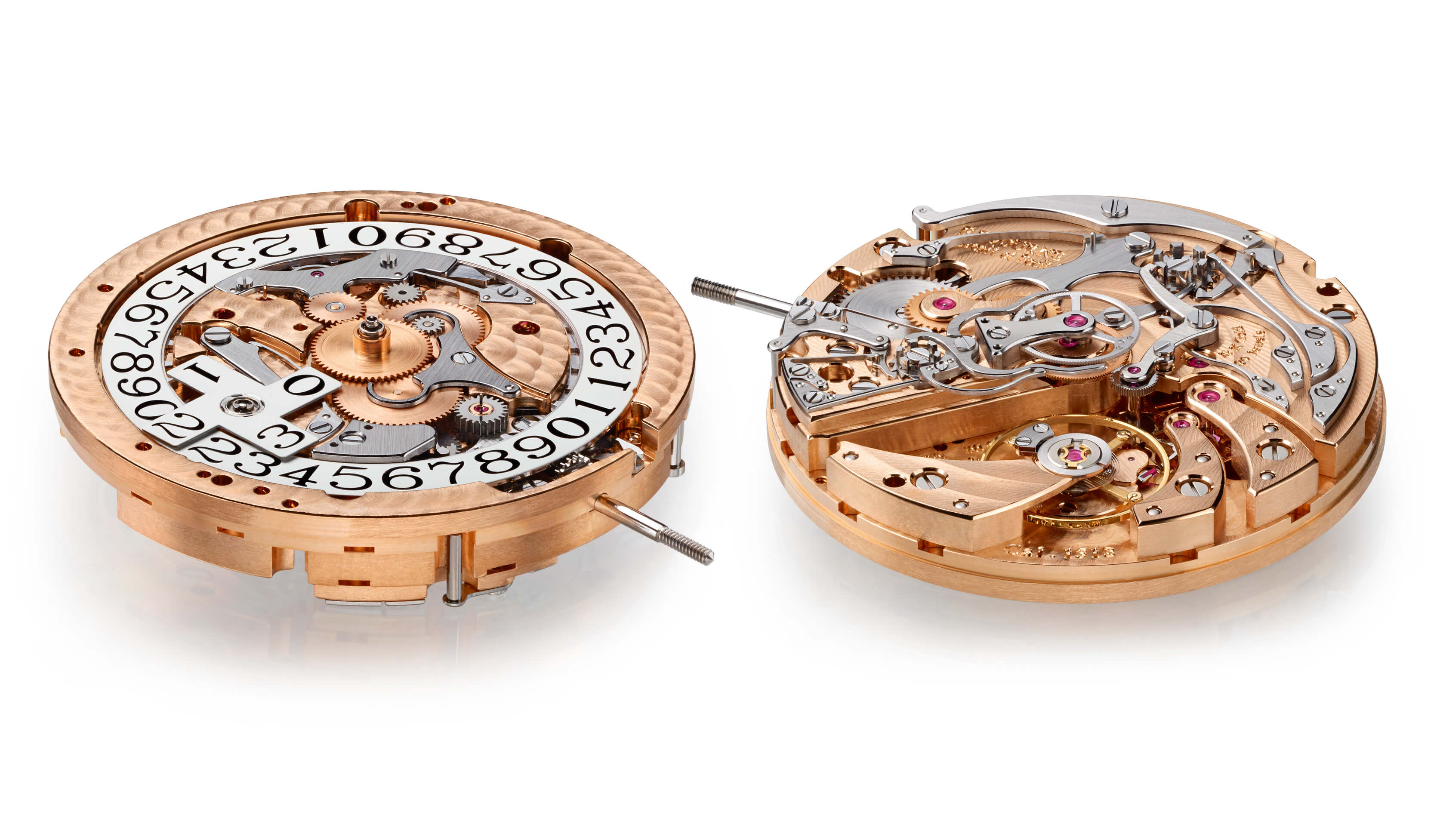

At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
18K 6N Gold case and bracelet with matte hammered finishing
Diameter: 44 mm
Overall height: 12.1 mm
Dial: blackened guilloché Silver dial, matte 5N Gold appliqué numerals, counters in whitened guilloché Silver
Hands: matte 5N gilt Steel, ivory coloured Steel and blued Steel
Finishing
18K 6N Gold case and bracelet with matte hammered finishing
Diameter: 44 mm
Overall height: 12.1 mm
Dial: blackened guilloché Silver dial, matte 5N Gold appliqué numerals, counters in whitened guilloché Silver
Hands: matte 5N gilt Steel, ivory coloured Steel and blued Steel
Calibre 1518

Technical Specifications

Movement :

    In 18K rose Gold
    Mechanical with manual winding
    38 turns of crown

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Power reserve :

    80 ± 2 hours without the chronograph

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work

Movement :

    In 18K rose Gold
    Mechanical with manual winding
    38 turns of crown

Number of Parts :

    Movement without dial: 285
    Cased up with strap: 453
    Jewels: 29

Dimensions of the Movement :

    Overall diameter: 33.60 mm
    Casing-up diameter: 33.20 mm
    Overall height: 6.80 mm
    Height of hands: 2.20 mm
    Diameter of stem thread: S1.20 mm

Balance :

    In-line lever escapement, 15-tooth escape wheel
    Chronometric with four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Free-sprung balance
    Nivatronic laser-welded to collet
    Pinned GE stud
    Frequency: 21,600 v/h (3Hz)
    Inertia: 10.10 mg*cm2
    Angle of lift: 52°

Main Characteristics :

    Crown with 3 positions
    Position 1: winding
    Position 2: correction of the date
    Position 3: time setting
    Pusher chronograph to start, stop and back to zero at 2h
    Pusher split-second at 4h

Amplitude :

    0h dial up: 300°
    24h dial up: 260°

Power reserve :

    80 ± 2 hours without the chronograph

Finishing :

    Circular stripes on the bridges, circular graining on the baseplate, polished screw heads with chamfered slots, pegs with polished rounded ends, straight-grained steel work


At the heart of the movement
At the heart of the movement
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.
fpjourne

Technical description


The calibre 1518 with manual winding, conceived by F.P.Journe, is as usual entirely made in our Manufacture and assembled by one of our watchmakers. F.P.Journe perpetuates the watchmaking tradition and maintains exclusive craftsmanship since every experienced watchmaker performs all the assembly stages from beginning to end, a unique case in the profession.

Inspired by the Chronograph made for Only Watch 2017, this new movement features a chronograph direct gearing with a rocking pinion avoiding the jump of the hand at the start. An important development was required to integrate the very large date in a total height of only 6.80 mm, signature of the F.P.Journe brand.

The magnificent finishing and decorations of the movement visible through a transparent sapphire back are one of the numerous undisputable qualities of the F.P.Journe Haute Horology.

BOUTIQUE EDITION - CHRONOGRAPHE RATTRAPANTE Calibre 1518 FP Journe FP Journe

Other views
F.P.Journe

About

THE BOUTIQUE EDITION COLLECTION BROADENS WITH THE CHRONOGRAPHE RATTRAPANTE. THE BOUTIQUE EDITION WITH BLACK DIAL ON 18K 6N GOLD CASE IS AVAILABLE ONLY IN THE F.P.JOURNE BOUTIQUES AND ESPACES.

THE 18K 6N GOLD CASE OF 44 MM DIAMETER AND 12.1 MM THICK ENCLOSES THE MONOPOUSSOIR SPLIT SECOND CHRONOGRAPH MOVEMENT WITH A VERY LARGE DATE, MADE IN 18K ROSE GOLD.

THIS CHRONOGRAPH FEATURES A POWER RESERVE OF 80 HOURS MAKING IT POSSIBLE TO EFFICIENTLY USE THE CHRONOGRAPH WITH THE RATTRAPANTE FUNCTION AFTER 2 DAYS AND A VERY LARGE DATE IN A WINDOW OF 5.20 X 2.80 MM PROVIDES AN INCREASED READABILITY. THE TACHYMETRIC BEZEL INLAID WITH CERAMIC AND THE NEW TYPOGRAPHIC NUMERAL ARE A REMINDER OF THE 2017 ONLY WATCH TIMEPIECE.

THIS TIMEPIECE HAS A BLACKENED SILVER GUILLOCHE DIAL, APPLIQUES NUMERALS IN MATTE 5N GOLD, 2 SILVER CHRONOGRAPH COUNTERS AND MATTE 5N GOLDEN HANDS. THE 18K 6N GOLD BRACELET HAS A MATTE HAMMERED FINISHING. THE LINKS ATTACHED TO THE CASE ARE ALSO ARTICULATED TO ADAPT TO THE DIFFERENT WRIST SIZES WITH AN ADJUSTABLE FOLDING CLASP IN LENGTH OF APPROXIMATELY 5 MM.

A CROWN WITH 3 POSITIONS:
- POSITION 1: WINDING.
- POSITION 2: CORRECTION OF THE VERY LARGE DATE.
- POSITION 3: TIME SETTING.

THE PUSHER ARE MADE IN THE SAME METAL AS THE CASE:
- A PUSHER AT 2H FOR THE CHRONOGRAPH START, STOP AND BACK TO ZERO FUNCTIONS.
- A PUSHER AT 4H FOR THE RATTRAPANTE.

THIS CALIBRE 1518 WITH MANUAL WINDING, CONCEIVED BY F.P.JOURNE, IS AS USUAL ENTIRELY MADE IN OUR MANUFACTURE AND ASSEMBLED BY ONE OF OUR WATCHMAKERS. F.P.JOURNE PERPETUATES THE WATCHMAKING TRADITION AND MAINTAINS EXCLUSIVE CRAFTSMANSHIP SINCE EVERY EXPERIENCED WATCHMAKER PERFORMS ALL THE ASSEMBLY STAGES FROM BEGINNING TO END, A UNIQUE CASE IN THE PROFESSION.

INSPIRED BY THE CHRONOGRAPH MADE FOR ONLY WATCH 2017, THIS NEW MOVEMENT FEATURES A CHRONOGRAPH DIRECT GEARING WITH A ROCKING PINION AVOIDING THE JUMP OF THE HAND AT THE START. AN IMPORTANT DEVELOPMENT WAS REQUIRED TO INTEGRATE THE VERY LARGE DATE IN A TOTAL HEIGHT OF ONLY 6.80 MM, SIGNATURE OF THE F.P.JOURNE BRAND. THE MAGNIFICENT FINISHING AND DECORATIONS OF THE MOVEMENT VISIBLE THROUGH A TRANSPARENT SAPPHIRE BACK ARE ONE OF THE NUMEROUS UNDISPUTABLE QUALITIES OF THE F.P.JOURNE HAUTE HOROLOGY.
