Centigraphe Anniversaire Calibre 1506 FP Journe FP Journe

Polished Titanium Anniversary case, crown and rocker in 18K 6N Gold
Diameter: 40 mm
Overall height: 10.1 mm
Dial: ruthenium on white Gold, registers in sapphire
Hands: 5N gilt Steel, small hands in red lacquered Titanium
Calibre 1506

Technical Specifications

Movement :
  • Winding : Manual
  • Movement in 18K rose gold : 50 jewels
Dimensions :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of hands : 1.45 mm
  • Height of winding system : 2.69 mm
  • Diameter of stem thread : S1.20 mm
Balance :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

Frequency :

    21,600 v/h, (3Hz)

Inertia :

    10.10 mg / cm2

Angle of lift :

    52°

Amplitude :

    0h dial up: 320°
    24h dial up: 280°

Escapement :

    In-line lever escapement
    15-tooth escape wheel

Indications :

    Central hours and minutes
    One-second chronograph hand at 10 o'clock.
    20-seconds chronograph hand at 2 o'clock.
    10-minutes chronograph hand at 6 o'clock.

Chronograph :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

Autonomy :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

Finishes :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

Control :

    Rocker arm to start, stop and zero the chronograph
    Three-position winding crown:
    Position 0: disengaged
    Position 1: winding
    Position 2: time-setting

Number of Parts :

    Movement without dial: 284
    Cased up with strap: 324

Movement :
  • Winding : Manual
  • Movement in 18K rose gold : 50 jewels
Dimensions :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of hands : 1.45 mm
  • Height of winding system : 2.69 mm
  • Diameter of stem thread : S1.20 mm
Balance :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

Frequency :

    21,600 v/h, (3Hz)

Inertia :

    10.10 mg / cm2

Angle of lift :

    52°

Amplitude :

    0h dial up: 320°
    24h dial up: 280°

Escapement :

    In-line lever escapement
    15-tooth escape wheel

Indications :

    Central hours and minutes
    One-second chronograph hand at 10 o'clock.
    20-seconds chronograph hand at 2 o'clock.
    10-minutes chronograph hand at 6 o'clock.

Chronograph :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

Autonomy :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

Finishes :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

Control :

    Rocker arm to start, stop and zero the chronograph
    Three-position winding crown:
    Position 0: disengaged
    Position 1: winding
    Position 2: time-setting

Number of Parts :

    Movement without dial: 284
    Cased up with strap: 324

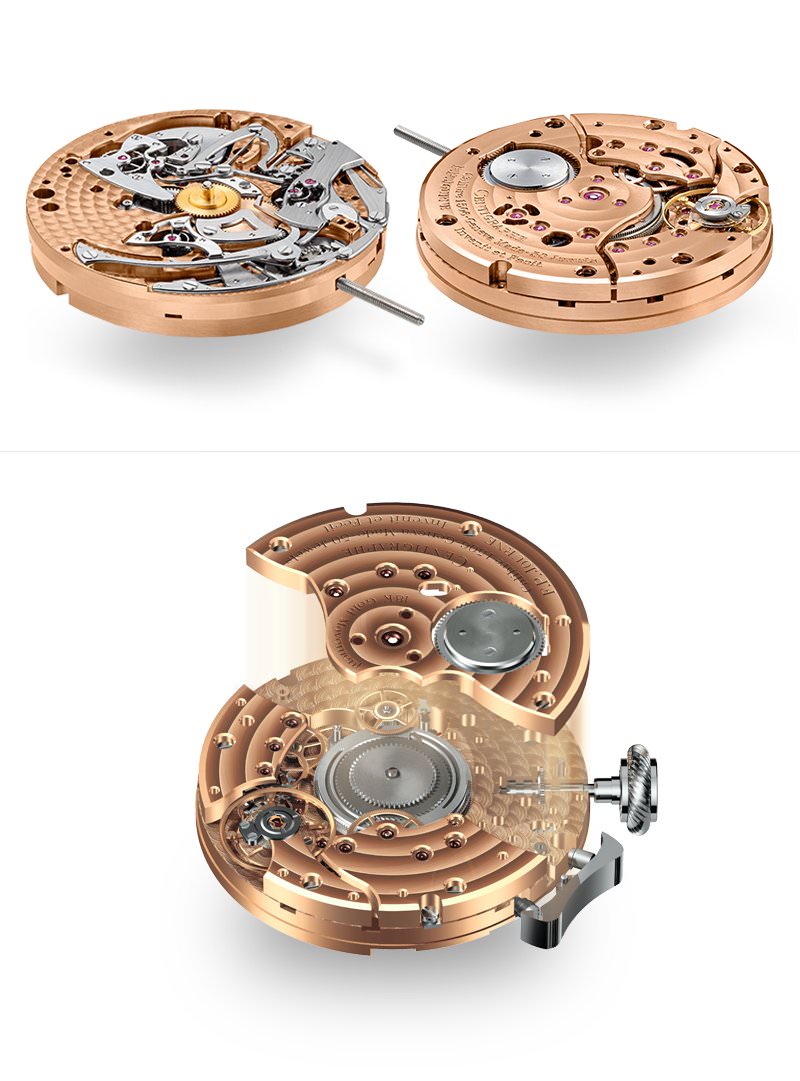

At the heart of the movement
At the heart of the movement
Brevet - Chronographe N°: EP 07405107 | Switch (rocker arm) N°: EP 1818734 A1
fpjourne

Technical description


For this movement unlike any other, F.P. Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running.
These two innovations have been patented.

The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.
The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.
Brevet - Chronographe N°: EP 07405107 | Switch (rocker arm) N°: EP 1818734 A1
fpjourne

Technical description


For this movement unlike any other, F.P. Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running.
These two innovations have been patented.

The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.
The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.
Polished Titanium Anniversary case, crown and rocker in 18K 6N Gold
Diameter: 40 mm
Overall height: 10.1 mm
Dial: ruthenium on white Gold, registers in sapphire
Hands: 5N gilt Steel, small hands in red lacquered Titanium
Finishing
Polished Titanium Anniversary case, crown and rocker in 18K 6N Gold
Diameter: 40 mm
Overall height: 10.1 mm
Dial: ruthenium on white Gold, registers in sapphire
Hands: 5N gilt Steel, small hands in red lacquered Titanium
Calibre 1506

Technical Specifications

Movement :
  • Winding : Manual
  • Movement in 18K rose gold : 50 jewels
Dimensions :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of hands : 1.45 mm
  • Height of winding system : 2.69 mm
  • Diameter of stem thread : S1.20 mm
Balance :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

Frequency :

    21,600 v/h, (3Hz)

Inertia :

    10.10 mg / cm2

Angle of lift :

    52°

Amplitude :

    0h dial up: 320°
    24h dial up: 280°

Escapement :

    In-line lever escapement
    15-tooth escape wheel

Indications :

    Central hours and minutes
    One-second chronograph hand at 10 o'clock.
    20-seconds chronograph hand at 2 o'clock.
    10-minutes chronograph hand at 6 o'clock.

Chronograph :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

Autonomy :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

Finishes :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

Control :

    Rocker arm to start, stop and zero the chronograph
    Three-position winding crown:
    Position 0: disengaged
    Position 1: winding
    Position 2: time-setting

Number of Parts :

    Movement without dial: 284
    Cased up with strap: 324

Movement :
  • Winding : Manual
  • Movement in 18K rose gold : 50 jewels
Dimensions :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of hands : 1.45 mm
  • Height of winding system : 2.69 mm
  • Diameter of stem thread : S1.20 mm
Balance :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

Frequency :

    21,600 v/h, (3Hz)

Inertia :

    10.10 mg / cm2

Angle of lift :

    52°

Amplitude :

    0h dial up: 320°
    24h dial up: 280°

Escapement :

    In-line lever escapement
    15-tooth escape wheel

Indications :

    Central hours and minutes
    One-second chronograph hand at 10 o'clock.
    20-seconds chronograph hand at 2 o'clock.
    10-minutes chronograph hand at 6 o'clock.

Chronograph :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

Autonomy :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

Finishes :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

Control :

    Rocker arm to start, stop and zero the chronograph
    Three-position winding crown:
    Position 0: disengaged
    Position 1: winding
    Position 2: time-setting

Number of Parts :

    Movement without dial: 284
    Cased up with strap: 324


At the heart of the movement
At the heart of the movement
Brevet - Chronographe N°: EP 07405107 | Switch (rocker arm) N°: EP 1818734 A1
fpjourne

Technical description


For this movement unlike any other, F.P. Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running.
These two innovations have been patented.

The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.
The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.
Brevet - Chronographe N°: EP 07405107 | Switch (rocker arm) N°: EP 1818734 A1
fpjourne

Technical description


For this movement unlike any other, F.P. Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running.
These two innovations have been patented.

The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.
The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.

Centigraphe Anniversaire Calibre 1506 FP Journe FP Journe

Other views
F.P.Journe
F.P.Journe

About

THIS MODEL WAS PRODUCED BETWEEN 2016 AND 2023.

THE CENTIGRAPHE ANNIVERSAIRE SYMBOLIZES THE WATCH CELEBRATING THE 10TH ANNIVERSARY OF EACH F.P.JOURNE BOUTIQUE.

THE CENTIGRAPHE ANNIVERSAIRE WAS AVAILABLE EXCLUSIVELY IN THE BOUTIQUES CELEBRATING THEIR 10TH ANNIVERSARY. EACH PIECE IS NUMBERED FOLLOWED BY THE NAME OF CORRESPONDING CITY, TOKYO, HONG KONG, GENEVA, PARIS, NEW YORK, MIAMI AND LOS ANGELES (LIMITED SERIES OF 10 PIECES PER BOUTIQUE, EXCEPT HONG KONG 20 PIECES).

THIS EXCLUSIVE EDITION IS MADE IN A PERFECT HARMONY OF COLOURS: A 40 MM POLISHED TITANIUM CASE, A RUTHENIUM DIAL WITH SAPPHIRE REGISTERS, AN 18K 6N GOLD CROWN AND ROCKER, THE EMBLEMATIC MECHANICAL MOVEMENT WITH MANUAL WINDING IN 18K ROSE GOLD AND THE BURGUNDY ALLIGATOR STRAP.

THE CENTIGRAPHE IS A SPECTACULAR MECHANICAL CHRONOGRAPH INDICATING ELAPSED TIMES FROM A 100TH OF A SECOND TO 10 MINUTES, VISIBLE ON 3 DIALS, EACH WITH A TIME SCALE IN RED. ON THE LEFT, THE 100TH OF A SECOND HAND REVOLVES AROUND THE DIAL IN ONE SECOND ON A SCALE MARKED IN HUNDREDTHS OF A SECOND. THE HAND ON THE RIGHT REVOLVES ONCE EVERY 20 SECONDS ON A TIME SCALE DIVIDED INTO SECONDS. THE HAND AT 6 O’CLOCK MAKES A TOUR IN 10 MINUTES.

THE CHRONOGRAPH IS STARTED, STOPPED AND ZEROED BY A ROCKER LOCATED AT 2 O’CLOCK IN THE CASE BAND. THIS ERGONOMIC DESIGN, PERFECTLY FITTED TO THE WRISTWATCH, IS PATENTED. A SECOND PATENT WAS GRANTED FOR THE MECHANISM’S INGENIOUS CONFIGURATION, WHICH EFFECTIVELY ISOLATES THE CHRONOGRAPH FROM THE TIMEKEEPING FUNCTION. THIS MEANS THE BALANCE AMPLITUDE IS UNAFFECTED WHEN THE CHRONOGRAPH IS RUNNING.

THE CENTIGRAPHE ANNIVERSAIRE CONTRIBUTES TO THE MEDICAL RESEARCH OF THE ICM_
IN PURCHASING THE CENTIGRAPHE ANNIVERSAIRE, YOU ARE ALSO SUPPORTING THE MEDICAL RESEARCH CARRIED OUT BY THE ICM – INSTITUTE OF BRAIN AND SPINAL CORD IN PARIS - TO HELP FIND A CURE FOR DISEASES SUCH AS ALZHEIMER’S, PARKINSON’S, AND MULTIPLE SCLEROSIS… ALONG WITH PROFESSOR GÉRARD SAILLANT, LUC BESSON, JEAN RÉNO, JEAN TODT, MICHELLE YEOH AND MICHAEL SCHUMACHER, AMONGST OTHERS, FRANÇOIS-PAUL JOURNE HAS COMMITTED TO DONATING 30% OF THE PROFITS FROM THE SALE OF EACH CENTIGRAPHE TO THE ICM, WITH NO TIME LIMIT (WWW.ICM-INSTITUTE.ORG/EN/).

AWARDS FOR THE CENTIGRAPHE SOUVERAIN_
THE CENTIGRAPHE SOUVERAIN WAS AWARDED THE « L’AIGUILLE D’OR » (THE GOLDEN HAND ) AT THE GRAND PRIX D’HORLOGERIE OF GENEVA IN 2008. IT WAS ALSO ELECTED WATCH OF THE YEAR ON TIMEZONE.COM IN 2009.
Testimony
CENTIGRAPHE SOUVERAIN

36,000 KM/H AT YOUR FINGERTIPS
THE ART TO CONVERT 6KM/H IN 36.000KM/H

A spectacular watch, the Centigraphe Souverain,
is a mechanical chronograph unlike any other

For the creation of the Centigraphe, things happened slightly differently than for other creations. I met Jean Todt through the ICM Foundation, and during the course of our meetings we discussed the ideal chronograph for the world of car racing. I thus remember research I carried out over 15 years ago for the creation of an exponential chronograph quickly showed me that a chronograph with 3 hands revolving at different speeds was a good starting base. I followed up with research on chronograph pushers, on questions of the balance of power in the movement, requirements, and energy loss, and I made use of a patent registered for the Sonnerie Souveraine. I patented 2 additional innovations concerning motricity. I am proud that Jean Todt has agreed to be the Centigraphe’s Godfather.

The Centigraphe represents a technical achievement in being the first wristwatch in the world equipped with a single hand wound movement allowing to measure elapsed times from one hundredth of a second to 10 minutes on three subsidiary dials. The hand of the first dial at 10 o’clock makes a turn in one second on a scale marked in hundredths of a second, making it theoretically possible to time an object moving at 360,000 km/h, or approximately 1/3000ths of the speed of light. The hand of the second dial at 2 o’clock is making a tour in 20 seconds, and the third hand of the dial at 6 o’clock, makes a tour in 10 minutes. A technical prowess to which can be added a power reserve of 80 hours – and 24 hours with the chronograph running.

The Centigraphe contributes to the Medical Research of the ICM
In purchasing the Centigraphe, you are also supporting the medical research carried out by the ICM – Institute of Brain and Spinal Cord in Paris - to help fight brain and spinal cord diseases such as Alzheimer’s, Parkinson’s, and Multiple Sclerosis… Along with Professor Gérard Saillant, Luc Besson, Jean Réno, Jean Todt, Michelle Yeoh and Michael Schumacher, amongst others, I have committed to donating 30% of the profits from the sale of each Centigraphe to the ICM, with no time limit.
(www.icm-institute.org)

François-Paul Journe

Technical Specifications

Movement :
  • Winding : Manual
  • Movement in 18K rose gold : 50 jewels
Dimensions :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of hands : 1.45 mm
  • Height of winding system : 2.69 mm
  • Diameter of stem thread : S1.20 mm
Balance :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

Frequency :

    21,600 v/h, (3Hz)

Inertia :

    10.10 mg / cm2

Angle of lift :

    52°

Amplitude :

    0h dial up: 320°
    24h dial up: 280°

Escapement :

    In-line lever escapement
    15-tooth escape wheel

Indications :

    Central hours and minutes
    One-second chronograph hand at 10 o'clock.
    20-seconds chronograph hand at 2 o'clock.
    10-minutes chronograph hand at 6 o'clock.

Chronograph :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

Autonomy :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

Finishes :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

Control :

    Rocker arm to start, stop and zero the chronograph
    Three-position winding crown:
    Position 0: disengaged
    Position 1: winding
    Position 2: time-setting

Number of Parts :

    Movement without dial: 284
    Cased up with strap: 324

Movement :
  • Winding : Manual
  • Movement in 18K rose gold : 50 jewels
Dimensions :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of hands : 1.45 mm
  • Height of winding system : 2.69 mm
  • Diameter of stem thread : S1.20 mm
Balance :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

Frequency :

    21,600 v/h, (3Hz)

Inertia :

    10.10 mg / cm2

Angle of lift :

    52°

Amplitude :

    0h dial up: 320°
    24h dial up: 280°

Escapement :

    In-line lever escapement
    15-tooth escape wheel

Indications :

    Central hours and minutes
    One-second chronograph hand at 10 o'clock.
    20-seconds chronograph hand at 2 o'clock.
    10-minutes chronograph hand at 6 o'clock.

Chronograph :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

Autonomy :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

Finishes :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

Control :

    Rocker arm to start, stop and zero the chronograph
    Three-position winding crown:
    Position 0: disengaged
    Position 1: winding
    Position 2: time-setting

Number of Parts :

    Movement without dial: 284
    Cased up with strap: 324


At the heart of the movement
At the heart of the movement
Brevet - Chronographe N°: EP 07405107 | Switch (rocker arm) N°: EP 1818734 A1
fpjourne

Technical description


For this movement unlike any other, F.P. Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running.
These two innovations have been patented.

The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.
The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.
Brevet - Chronographe N°: EP 07405107 | Switch (rocker arm) N°: EP 1818734 A1
fpjourne

Technical description


For this movement unlike any other, F.P. Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running.
These two innovations have been patented.

The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.
The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.
  • fpjourne
    Aiguille d'Or 2008
  • About

    THIS MODEL WAS PRODUCED BETWEEN 2016 AND 2023.

    THE CENTIGRAPHE ANNIVERSAIRE SYMBOLIZES THE WATCH CELEBRATING THE 10TH ANNIVERSARY OF EACH F.P.JOURNE BOUTIQUE.

    THE CENTIGRAPHE ANNIVERSAIRE WAS AVAILABLE EXCLUSIVELY IN THE BOUTIQUES CELEBRATING THEIR 10TH ANNIVERSARY. EACH PIECE IS NUMBERED FOLLOWED BY THE NAME OF CORRESPONDING CITY, TOKYO, HONG KONG, GENEVA, PARIS, NEW YORK, MIAMI AND LOS ANGELES (LIMITED SERIES OF 10 PIECES PER BOUTIQUE, EXCEPT HONG KONG 20 PIECES).

    THIS EXCLUSIVE EDITION IS MADE IN A PERFECT HARMONY OF COLOURS: A 40 MM POLISHED TITANIUM CASE, A RUTHENIUM DIAL WITH SAPPHIRE REGISTERS, AN 18K 6N GOLD CROWN AND ROCKER, THE EMBLEMATIC MECHANICAL MOVEMENT WITH MANUAL WINDING IN 18K ROSE GOLD AND THE BURGUNDY ALLIGATOR STRAP.

    THE CENTIGRAPHE IS A SPECTACULAR MECHANICAL CHRONOGRAPH INDICATING ELAPSED TIMES FROM A 100TH OF A SECOND TO 10 MINUTES, VISIBLE ON 3 DIALS, EACH WITH A TIME SCALE IN RED. ON THE LEFT, THE 100TH OF A SECOND HAND REVOLVES AROUND THE DIAL IN ONE SECOND ON A SCALE MARKED IN HUNDREDTHS OF A SECOND. THE HAND ON THE RIGHT REVOLVES ONCE EVERY 20 SECONDS ON A TIME SCALE DIVIDED INTO SECONDS. THE HAND AT 6 O’CLOCK MAKES A TOUR IN 10 MINUTES.

    THE CHRONOGRAPH IS STARTED, STOPPED AND ZEROED BY A ROCKER LOCATED AT 2 O’CLOCK IN THE CASE BAND. THIS ERGONOMIC DESIGN, PERFECTLY FITTED TO THE WRISTWATCH, IS PATENTED. A SECOND PATENT WAS GRANTED FOR THE MECHANISM’S INGENIOUS CONFIGURATION, WHICH EFFECTIVELY ISOLATES THE CHRONOGRAPH FROM THE TIMEKEEPING FUNCTION. THIS MEANS THE BALANCE AMPLITUDE IS UNAFFECTED WHEN THE CHRONOGRAPH IS RUNNING.

    THE CENTIGRAPHE ANNIVERSAIRE CONTRIBUTES TO THE MEDICAL RESEARCH OF THE ICM_
    IN PURCHASING THE CENTIGRAPHE ANNIVERSAIRE, YOU ARE ALSO SUPPORTING THE MEDICAL RESEARCH CARRIED OUT BY THE ICM – INSTITUTE OF BRAIN AND SPINAL CORD IN PARIS - TO HELP FIND A CURE FOR DISEASES SUCH AS ALZHEIMER’S, PARKINSON’S, AND MULTIPLE SCLEROSIS… ALONG WITH PROFESSOR GÉRARD SAILLANT, LUC BESSON, JEAN RÉNO, JEAN TODT, MICHELLE YEOH AND MICHAEL SCHUMACHER, AMONGST OTHERS, FRANÇOIS-PAUL JOURNE HAS COMMITTED TO DONATING 30% OF THE PROFITS FROM THE SALE OF EACH CENTIGRAPHE TO THE ICM, WITH NO TIME LIMIT (WWW.ICM-INSTITUTE.ORG/EN/).

    AWARDS FOR THE CENTIGRAPHE SOUVERAIN_
    THE CENTIGRAPHE SOUVERAIN WAS AWARDED THE « L’AIGUILLE D’OR » (THE GOLDEN HAND ) AT THE GRAND PRIX D’HORLOGERIE OF GENEVA IN 2008. IT WAS ALSO ELECTED WATCH OF THE YEAR ON TIMEZONE.COM IN 2009.
  • Testimony

    CENTIGRAPHE SOUVERAIN

    36,000 KM/H AT YOUR FINGERTIPS
    THE ART TO CONVERT 6KM/H IN 36.000KM/H

    A spectacular watch, the Centigraphe Souverain,
    is a mechanical chronograph unlike any other

    For the creation of the Centigraphe, things happened slightly differently than for other creations. I met Jean Todt through the ICM Foundation, and during the course of our meetings we discussed the ideal chronograph for the world of car racing. I thus remember research I carried out over 15 years ago for the creation of an exponential chronograph quickly showed me that a chronograph with 3 hands revolving at different speeds was a good starting base. I followed up with research on chronograph pushers, on questions of the balance of power in the movement, requirements, and energy loss, and I made use of a patent registered for the Sonnerie Souveraine. I patented 2 additional innovations concerning motricity. I am proud that Jean Todt has agreed to be the Centigraphe’s Godfather.

    The Centigraphe represents a technical achievement in being the first wristwatch in the world equipped with a single hand wound movement allowing to measure elapsed times from one hundredth of a second to 10 minutes on three subsidiary dials. The hand of the first dial at 10 o’clock makes a turn in one second on a scale marked in hundredths of a second, making it theoretically possible to time an object moving at 360,000 km/h, or approximately 1/3000ths of the speed of light. The hand of the second dial at 2 o’clock is making a tour in 20 seconds, and the third hand of the dial at 6 o’clock, makes a tour in 10 minutes. A technical prowess to which can be added a power reserve of 80 hours – and 24 hours with the chronograph running.

    The Centigraphe contributes to the Medical Research of the ICM
    In purchasing the Centigraphe, you are also supporting the medical research carried out by the ICM – Institute of Brain and Spinal Cord in Paris - to help fight brain and spinal cord diseases such as Alzheimer’s, Parkinson’s, and Multiple Sclerosis… Along with Professor Gérard Saillant, Luc Besson, Jean Réno, Jean Todt, Michelle Yeoh and Michael Schumacher, amongst others, I have committed to donating 30% of the profits from the sale of each Centigraphe to the ICM, with no time limit.
    (www.icm-institute.org)

    François-Paul Journe
  • Technical description

    Technical Specifications

    Movement :
    • Winding : Manual
    • Movement in 18K rose gold : 50 jewels
    Dimensions :
    • Overall diameter : 34.40 mm
    • Casing-up diameter : 34.00 mm
    • Overall height : 5.60 mm
    • Height of hands : 1.45 mm
    • Height of winding system : 2.69 mm
    • Diameter of stem thread : S1.20 mm
    Balance :

      Free-sprung balance
      Four adjustable inertia weights
      Anachron balance spring
      Mobile stud holders
      Pinned GE stud
      Spring pinned to the collect

    Frequency :

      21,600 v/h, (3Hz)

    Inertia :

      10.10 mg / cm2

    Angle of lift :

      52°

    Amplitude :

      0h dial up: 320°
      24h dial up: 280°

    Escapement :

      In-line lever escapement
      15-tooth escape wheel

    Indications :

      Central hours and minutes
      One-second chronograph hand at 10 o'clock.
      20-seconds chronograph hand at 2 o'clock.
      10-minutes chronograph hand at 6 o'clock.

    Chronograph :

      Separate chronograph train driven by directly from the mainspring.
      1/100th second readout

    Autonomy :

      80 ± 2 hours with the chronograph stopped
      24 ± 2 hours with the chronograph running

    Finishes :

      Circular stripes on the bridges
      Circular graining on the baseplate
      Polished screw heads with chamfered slots
      Pegs with polished rounded ends
      Straight-grained steel work

    Control :

      Rocker arm to start, stop and zero the chronograph
      Three-position winding crown:
      Position 0: disengaged
      Position 1: winding
      Position 2: time-setting

    Number of Parts :

      Movement without dial: 284
      Cased up with strap: 324

    Movement :
    • Winding : Manual
    • Movement in 18K rose gold : 50 jewels
    Dimensions :
    • Overall diameter : 34.40 mm
    • Casing-up diameter : 34.00 mm
    • Overall height : 5.60 mm
    • Height of hands : 1.45 mm
    • Height of winding system : 2.69 mm
    • Diameter of stem thread : S1.20 mm
    Balance :

      Free-sprung balance
      Four adjustable inertia weights
      Anachron balance spring
      Mobile stud holders
      Pinned GE stud
      Spring pinned to the collect

    Frequency :

      21,600 v/h, (3Hz)

    Inertia :

      10.10 mg / cm2

    Angle of lift :

      52°

    Amplitude :

      0h dial up: 320°
      24h dial up: 280°

    Escapement :

      In-line lever escapement
      15-tooth escape wheel

    Indications :

      Central hours and minutes
      One-second chronograph hand at 10 o'clock.
      20-seconds chronograph hand at 2 o'clock.
      10-minutes chronograph hand at 6 o'clock.

    Chronograph :

      Separate chronograph train driven by directly from the mainspring.
      1/100th second readout

    Autonomy :

      80 ± 2 hours with the chronograph stopped
      24 ± 2 hours with the chronograph running

    Finishes :

      Circular stripes on the bridges
      Circular graining on the baseplate
      Polished screw heads with chamfered slots
      Pegs with polished rounded ends
      Straight-grained steel work

    Control :

      Rocker arm to start, stop and zero the chronograph
      Three-position winding crown:
      Position 0: disengaged
      Position 1: winding
      Position 2: time-setting

    Number of Parts :

      Movement without dial: 284
      Cased up with strap: 324


    At the heart of the movement
    At the heart of the movement
    Brevet - Chronographe N°: EP 07405107 | Switch (rocker arm) N°: EP 1818734 A1
    fpjourne

    Technical description


    For this movement unlike any other, F.P. Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running.
    These two innovations have been patented.

    The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.
    The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.
    Brevet - Chronographe N°: EP 07405107 | Switch (rocker arm) N°: EP 1818734 A1
    fpjourne

    Technical description


    For this movement unlike any other, F.P. Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running.
    These two innovations have been patented.

    The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.
    The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.

Technical Specifications

Movement :
  • Winding : Manual
  • Movement in 18K rose gold : 50 jewels
Dimensions :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of hands : 1.45 mm
  • Height of winding system : 2.69 mm
  • Diameter of stem thread : S1.20 mm
Balance :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

Frequency :

    21,600 v/h, (3Hz)

Inertia :

    10.10 mg / cm2

Angle of lift :

    52°

Amplitude :

    0h dial up: 320°
    24h dial up: 280°

Escapement :

    In-line lever escapement
    15-tooth escape wheel

Indications :

    Central hours and minutes
    One-second chronograph hand at 10 o'clock.
    20-seconds chronograph hand at 2 o'clock.
    10-minutes chronograph hand at 6 o'clock.

Chronograph :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

Autonomy :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

Finishes :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

Control :

    Rocker arm to start, stop and zero the chronograph
    Three-position winding crown:
    Position 0: disengaged
    Position 1: winding
    Position 2: time-setting

Number of Parts :

    Movement without dial: 284
    Cased up with strap: 324

Movement :
  • Winding : Manual
  • Movement in 18K rose gold : 50 jewels
Dimensions :
  • Overall diameter : 34.40 mm
  • Casing-up diameter : 34.00 mm
  • Overall height : 5.60 mm
  • Height of hands : 1.45 mm
  • Height of winding system : 2.69 mm
  • Diameter of stem thread : S1.20 mm
Balance :

    Free-sprung balance
    Four adjustable inertia weights
    Anachron balance spring
    Mobile stud holders
    Pinned GE stud
    Spring pinned to the collect

Frequency :

    21,600 v/h, (3Hz)

Inertia :

    10.10 mg / cm2

Angle of lift :

    52°

Amplitude :

    0h dial up: 320°
    24h dial up: 280°

Escapement :

    In-line lever escapement
    15-tooth escape wheel

Indications :

    Central hours and minutes
    One-second chronograph hand at 10 o'clock.
    20-seconds chronograph hand at 2 o'clock.
    10-minutes chronograph hand at 6 o'clock.

Chronograph :

    Separate chronograph train driven by directly from the mainspring.
    1/100th second readout

Autonomy :

    80 ± 2 hours with the chronograph stopped
    24 ± 2 hours with the chronograph running

Finishes :

    Circular stripes on the bridges
    Circular graining on the baseplate
    Polished screw heads with chamfered slots
    Pegs with polished rounded ends
    Straight-grained steel work

Control :

    Rocker arm to start, stop and zero the chronograph
    Three-position winding crown:
    Position 0: disengaged
    Position 1: winding
    Position 2: time-setting

Number of Parts :

    Movement without dial: 284
    Cased up with strap: 324


At the heart of the movement
At the heart of the movement
Brevet - Chronographe N°: EP 07405107 | Switch (rocker arm) N°: EP 1818734 A1
fpjourne

Technical description


For this movement unlike any other, F.P. Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running.
These two innovations have been patented.

The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.
The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.
Brevet - Chronographe N°: EP 07405107 | Switch (rocker arm) N°: EP 1818734 A1
fpjourne

Technical description


For this movement unlike any other, F.P. Journe has set up an ergonomic chronograph activation system with a rocker arm that allows the chronograph to start, stop and zero at 2 o’clock in the case band, instead of the usual buttons on either side of the crown. The chronograph function has also been isolated from the timekeeping function, meaning that the balance amplitude is unaffected when the chronograph is running.
These two innovations have been patented.

The hand-wound mechanical movement of the Centigraphe indicates elapsed times from a 100th of a second to 10 minutes, visible on 3 dials, each with a time scale in red and a tachometer scale in black.
The tachometer scales converts time units for 1 kilometer into speeds ranging from 6 km/h —walking pace — to 36'000 km/h, well above the escape velocity of a rocket going into low-level orbit.
